40 ft rear dumper thawv skeleton tsheb trailer nrog 3 qag shipping thawv
Function thiab zoo:
Nws yog tsim los nqa 2 * 20ft thawv lossis 1 * 40ft thawv. Muab piv nrog cov thawv ntim khoom tiaj tiaj, pob txha pob txha thawv trailer chassis nrog cov roj-npaum zoo li nws qhov hnyav tuag.
Cov ntaub ntawv ntawm cov khoom:
| 40 ft rear dumper thawv skeleton tsheb trailer nrog 3 qag shipping thawv | |
Tare luj | 6 500kg |
qhov loj | 13000x2500x1500mm |
Them nyiaj | 50t |
Main beam | Heavy luag hauj lwm thiab ntxiv durability tsim kuv beam; opting rau siab tensile steel T700, welded los ntawm tsis siv neeg submerged-Arc txheej txheem. Sab saum toj flange 10mm, dav 140mm; Nruab nrab Flange 8mm siab 500mm; hauv qab flange 10mm, dav 140mm |
Cross tus tswv cuab | 12 # channel steel (Q235) |
Qag | 3 qag FUWA/HJ/BPW/L1 brand 13T |

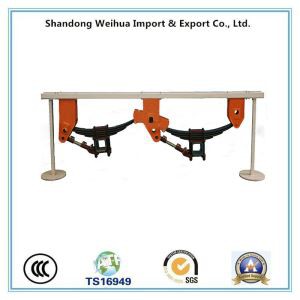

Kev ncua | Mechanical suspension American hom hom hauv zos |
Nplooj caij nplooj ntoos hlav | Nplooj caij nplooj ntoos hlav 10pcsx 90x13mm |
Lub log | 12R22.5/11R22.5/12.00R20/11.{10}R20 yeem |
Lub log rim | 9.0/8.5/8.0 Xaiv tau |
Kingpin | JOST hom 2 "/ 3.5" bolt-hauv huab tais tus pin |
tsaws iav | JOST / FUWA / SAF hom ob-ceev, phau ntawv khiav haujlwm, hnyav tsaws iav 28T |
Twist xauv | 12pcs / 8pcs |
Braking system | WABCO RE6 relay valve; T30/30 caij nplooj ntoos hlav nres chamber; 40L cua tso tsheb hlau luam |
ABS | Xaiv tau |
Kev pleev xim | WABCO RE6 relay valve; T30/30 caij nplooj ntoos hlav nres chamber; 40L cua tso tsheb hlau luam |
Khoom siv | Ib lub thawv khoom txheem, ib lub log tsheb spare, ib lub crank, ib lub taub hau taub hau, plaub sab teeb, |
FAQ
Q1. Koj puas yog cov chaw tsim khoom?
Yog lawm, peb tau nyob hauv kev tsim tsheb tshwj xeeb thiab kev lag luam rau ntau tshaj 20 xyoo.
Q2. Cov kev lag luam twg koj lub tsheb xa tawm mus rau?
South America, South-East Asia, Africa, Oceanica, Middle East lub teb chaws thiab lwm yam.
Q3. Cov ntaub ntawv dab tsi kuv yuav tsum qhia rau koj paub yog tias kuv xav tau cov lus hais?
Thov qhia rau peb paub koj lub hom phiaj, txoj kev mob, hom khoom thauj, tons ntawm koj cov khoom thauj, qhov ntev ntawm trailer, kom muaj nuj nqis thiab lwm yam. Cov ntaub ntawv ntau ntxiv koj muab, tus qauv thiab tus nqi ntau dua koj yuav tau txais.
Q4. Nws puas muaj los luam peb tus kheej lub npe ntawm lub tsheb?
Tau txais tag nrho raws li koj xav tau.
Q5. Kuv tuaj yeem tau txais tus nqi ntawm koj lub tsheb li cas?
Koj tuaj yeem txuas nrog peb los ntawm ib qho ntawm cov ntaub ntawv tiv tauj hauv qab no. Peb tus neeg pabcuam tus kheej yuav teb koj li ntawm 24 teev.
Cim npe nrov: 40 ft rear dumper thawv skeleton tsheb trailer nrog 3 qag shipping thawv, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, nqe
